6” Oval Red Lightning Series Stop/Turn/Tail Kit with Grommet & Right Angle Plug

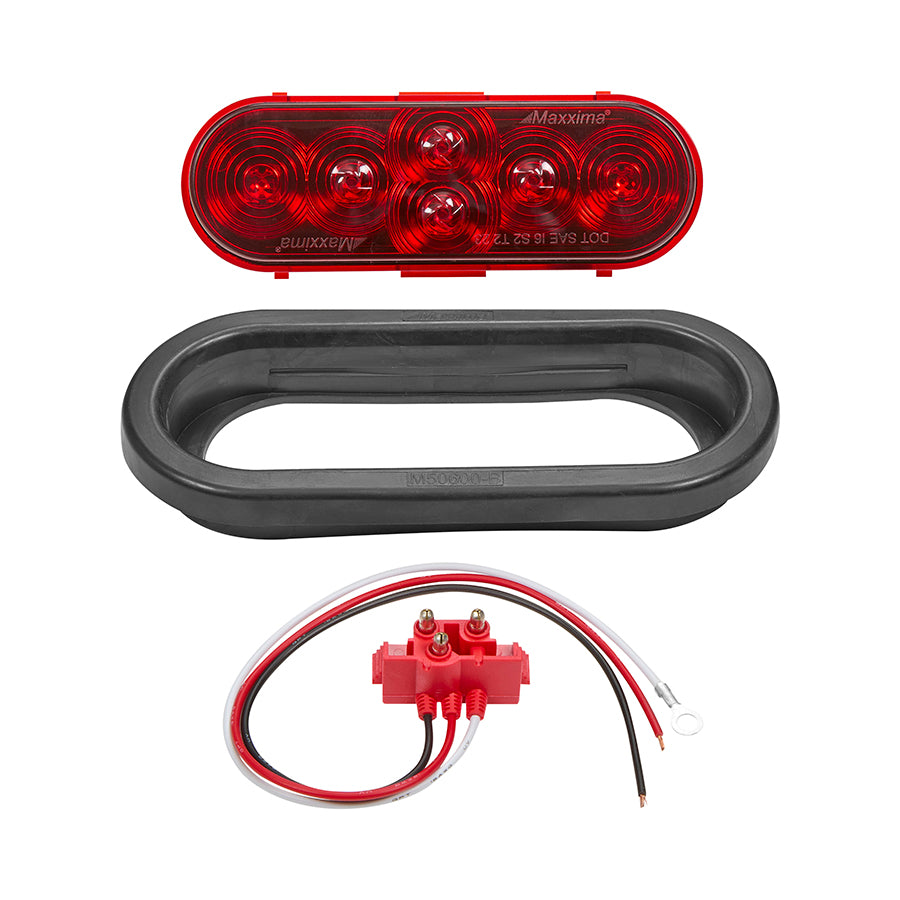

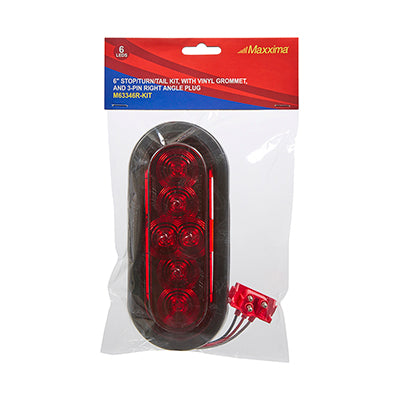

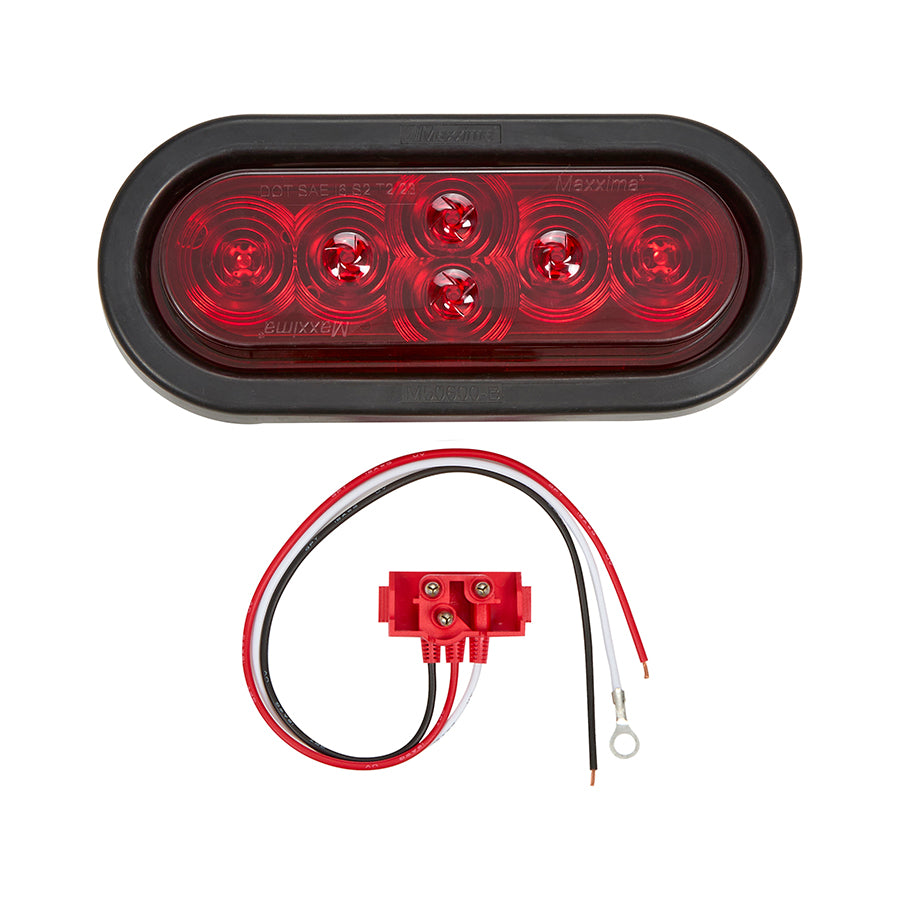

The M63346R-KIT is a retail-ready package including our popular 6 LED M63346R 6” oval stop/turn/tail light along with the mounting grommet and PL-3 pigtail connector. The M63346R light features a polycarbonate lens & housing, an integrated PL-3 connector, and is backed by a 5-year warranty. The included M50600-B is a premium vinyl grommet and the M50900 plug features a built in strain relief and rolled plugs for a secure connection.

Features & Benefits:

• Our Most Popular 6” Oval Stop Light Now  in Kit Form with Grommet & Pigtail
• Kit Includes (1) M63346R, (1) M50600-B, (1) M50900
• Polycarbonate Lens & Housing
• 5 Year Warranty

Specifications:

• LEDs 6
• Voltage 12.8VDC
• Amp Draw 130mA
• Dimensions 6.4” W x 2.2”H x 1.7” D
• Mounting 6” Oval Grommet (Included)
• Connector PL-3, 3 Leads 12” (Included)

• DOT/SAE J2040, J2261
