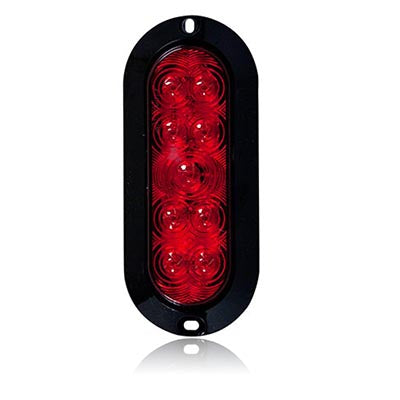

6" Oval Red Stop/Turn/Tail Surface Mount, Black Housing

The M63320R-A is a 6” oval stop/turn/tail light with an integrated surface mount housing allowing it to be mounted to an exterior surface using two mounting screws. It is DOT compliant in either vertical or horizontal mounts. This light features a polycarbonate lens & housing and is backed by a 5-year warranty.

FEATURES & BENEFITS

• 6" Oval Surface Mount Stop/Turn/Tail
• Vertical or Horizontal Mount
• Polycarbonate Lens & Housing
• Replaces M63320R, M63321R-X
• 5 Year Warranty

SPECIFICATIONS

• LEDs: 10
• Voltage: 12.8VDC
• Amp Draw: 100mA /10mA
• Dimensions: 7.8" W x 3.5" H x 0.7" D
• Mounting: 2-Hole Surface, 7.25" Center to Center
• Connector: 3 Leads Blunt Cut, 7"
• Legal Heading: I6 S2 T2
• DOT/SAE: J2040, J2261
