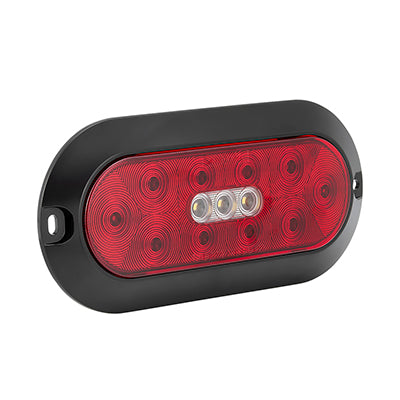

6" Oval Hybrid Stop/Turn/Tail & Back-Up - Surface Mount

Description:

The M85620R is a surface mount oval hybrid combination stop/turn/tail and back-up light. It features 10 LEDs for the red STT functions, and 3 LEDs for the white back-up and is DOT compliant in both horizontal and vertical mounts. Its integrated mounting flange provides a secure mount and fits industry standard 7.25” bolt spacing. It requires 3 holes: (2) 3/16” mounting holes, and (1) 1” hole for the cable exit. The M85620R has two PL-3 connectors on 7” leads, one for the S/T/T circuit and one for the BU circuit. This light features a polycarbonate lens & housing, and is backed by a 5-year warranty.

Features & Benefits:

• 6” Oval Hybrid Combo Stop/Turn/Tail & Back-Up
• Similar Look & Size as M63320-Series
• Replaces M85615R & M85616R
• Industry Standard 7.25” Bolt Spacing
• Qty. (2) Industry Standard PL-3 Three-Pin Connectors
• Polycarbonate Lens & Housing
• DOT Compliant in Both Horizontal or Vertical Mount
• 5 Year Warranty

Specifications:

• LEDs 13 (10 Red, 3 White)
• Voltage 12.8VDC
• Amp Draw RED S/T/T: 150mA / 10mA
• WHITE B-U: 150mA
• Dimensions 7.8” W x 3.5” H x 0.6” D
• Mounting 2 Hole Surface, 7.25” C to C
• Connector Qty. (2) PL-3, 7” Leads
• Legal Heading I6 S2 T2 R
• DOT/SAE J593, J2040, J2261
